This circle was made with a mixture of 11 each #CS-6531 & #CS-6541 Pavers. The outer circle edge is 38" and the inner circle is 26".
This circle measures 16" inside and 28" edge to edge outside and is made up of 16 individual #CS-6531 Pavers.

This elongated circle is made up of 8 #CS-6541 Pavers and 13 #CS-6541 Pavers. Note that the Keystone Pavers can make a straight line also.

These triangles were made using 12 each of #CS-6531 and #CS-6541 Pavers. The #CS-6531 were used mainly at the corners, and note that the #CS-6541 Pavers were used to make the somewhat straight runs between the corners.

Many designs and unique patterns can be created with these Keystone shaped pavers. The examples below could be used in the garden, around trees, around a small fish pond, or to just highlight an area in the yard. And below are some photos to provide ideas of how you could use 1.5" thick Keystone shaped pavers over a concrete driveway or patio.  The 2.5" thick Pavers can be used for both patio or driveway applications to make circular or curved patterns.

Part Numbers and Paver Measurements, and How They Relate to Each Other

As is the case with many of our part numbers, they relate directly with the measurements of the mold and/or finished stone piece itself. Paver #P-0882 measures 8"x8"x2.5" in size. We round off the thickness to either 1 for 1.5" thick, or 2 for a 2.5" thick paver. And most measurements are approximate, or what are referred to as "nominal". A term used for close or an accepted assumption.

As an example, the #CS-6531 is a Castle Stone style paver that is 6" top to bottom, 5" across the top, 3" across the bottom, and 1.5" thick. The P-6531 paver has the same measurements, but is smooth, not chiselled like the Castle Stone. Whereas a #P-6522 paver measures 6" top to bottom, 5" across the top, 2" across the bottom, and is 2.5" thick. It is a smooth cobblestone style.

#CS-6531 Castle Stone Patio Pavers
are 6"x5"x3"x1.5" and cost $2.99 each.

#CS-6541 Castle Stone Patio Pavers
are 6"x5"x4"x1.5" and cost $2.99 each.

#P-6531 Cobblestone Patio Pavers
are 6"x5"x3"x1.5" and cost $2.99 each.

#P-6541 Cobblestone Patio Pavers
are 6"x5"x4"x1.5" and cost $2.99 each.

#P-6522 Cobblestone Driveway Pavers
are 6"x5"x2"x2.5" and cost $3.99 each.

#P-6542 Cobblestone Driveway Pavers
are 6"x5"x4"x2.5" and cost $3.99 each.

The #P-0661 Cobblestone Patio Pavers are 6"x6"x1.5" and compliment
both the #P-6531 and #P-6541 Pavers in patio designs.

Keystone Shaped Pavers Offer Unlimited Driveway and Patio Paver Design Combinations

concrete coloring
concrete coloring
concrete coloring
concrete coloring

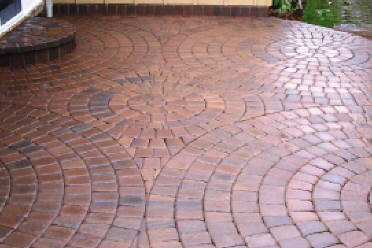

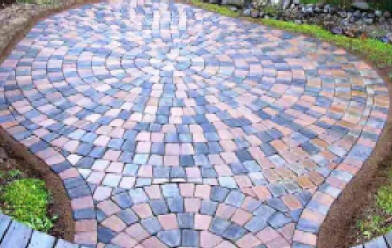

Examples of Keystone Shaped Paver Installations Beautifully Designed and Installed

Use the links below to learn more about our concrete stone, tile, brick, paver, cobblestone, and other molds, as well as our concrete colors and colorants, concrete stains, mold release, sealers, and more on this website.

VISIT OUR OTHER WEBSITES BELOW FOR ADDITIONAL INFORMATION

           WANT TO BE KEPT UP TO DATE ON OUR PROMOTIONS
 Please complete the following information to receive our Quarterly Newsletters. You will be asked via email to confirm your sign-up.
WE PROMISE... YOUR EMAIL WILL NOT BE SHARED WITH ANYONE.





PHOTOS
OF MOLDS

concrete coloring
concrete coloring
concrete coloring

This 11" inside and 22" outside circle was created using 13 of our P-6522 Pavers.

This 20" inside and 31" outside circle was made with 9 each P-6522 and P-6542 Pavers.
Here's a rectangle made with P-6542 Pavers.  By combining sizes, the designs are infinite.

One additional note... The key determining factor of the size of a circle when using Keystone-shaped pavers is the third number of the part number. That number determines the paver angle. Theoretically, it should take about 30 of the CS-6541 Pavers to make an inner circle of 42 inches, with an outer measurement across of 54 inches. A P-6542 Paver should yield the same size circle since the bottom measurement is the same (4"). So whether it's 25 each #P-6541 or 25 each #P-6542, the circle measurements will be the same, with inside measurements of 33" across and 44" from outside edge to outside edge across the circle.
